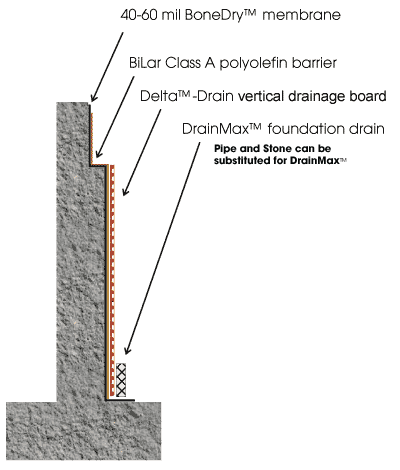

is a three-layer system comprised of BoneDry™ waterproofing
membrane, BiLar™ polyolefin barrier, Delta™-Drain
vertical drainage board, and the DrainMax™ (or Pipe
and Stone) foundation drain. Ask any respected architect
or engineer what makes a good waterproofing system and
they will all answer the same thing – redundancy.
Any water that is not first drained away by Delta™-Drain
and DrainMax™ must then pass through two more seamless,
waterproof barriers; that’s the ultimate in protection,
the ultimate in redundancy. See the BoneDry™, BiLar™,
Delta™-Drain, and DrainMax™ specification
sheets for more information on the individual components
of this system.
Select this system for hard to waterproof substrates,
humidity sensitive areas located below grade, and places
that demand a fail-safe solution for severe-duty waterproofing.
Typical applications include ICF and block basements,
areas likely to experience extreme settlement or freeze-thaw
heaving, remedial waterproofing, deep basements, allergy
sensitive residents, below grade rooms containing wine
vaults, cigar humidors, electronics, or hardwood floors.
