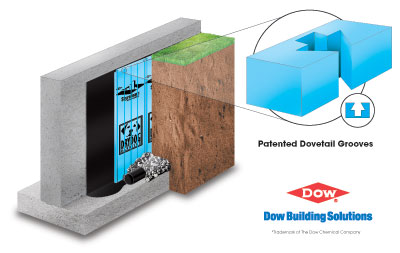

PERIMATE™ is an extruded
polystyrene foam insulation board with patented dovetail
grooves cut into one face of the board and shiplap
edges on the long edges. When installed on the exterior
of basement walls, it provides insulation, protects
the waterproofing membrane and assists water drainage
away from the foundation. Qualifies as Class A Type
2 drainage product in Canada.
For detailed
application instructions contact Dry Dog Barriers at
1-888-5-DRYDOG
| Nominal Board Thickness |
1” |
1 1/2” |
2 1/8” |
R-Value
at 75°F Mean
|
5.0 |
7.0 |
10.0 |
Board Size: 2’ x 7’ and 2’ x
8’

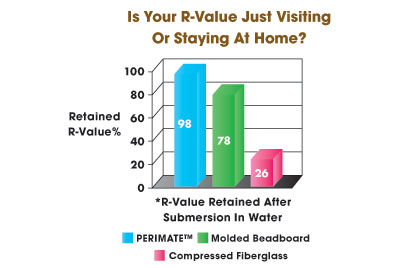

PERIMATE Maintains R-Value When Saturated
| |
1" Perimate |
2" Perimate |
3/4" FG |
1 3/16" FG |
2 3/8" FG |
Advertised
R-Value |
5 |
10 |
3.2 |
5 |
10.1 |
Saturated
R-Value
|
4.85 |
9.7 |
.83 |
1.3 |
2.63 |

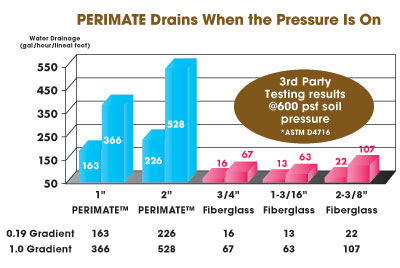

Drainage Results
1” PERIMATE™ vs. 1-3/16” Fiberglass
gallons per hour/LF at 1.0 gradient
Soil Pressure
(lbs/SF) |
1" Perimate |
3/4" FG |
Increased Drainage |
| 600 |
366 Gallons |
63 Gallons |
480 |
| 800 |
357 Gallons |
39 Gallons |
815 |
1,000
|
363 Gallons |
32 Gallons |
1,034 |
Figures based on average soil pressures at average basement depths.
Please consult your local codes for geographical loading requirements.
* conditions for water submersion: PERIMATE and Molded Beadboard
submerged under 2" of water for 21 days, Compressed Fiberglass
submerged under 1" of water for 1 day.
|
